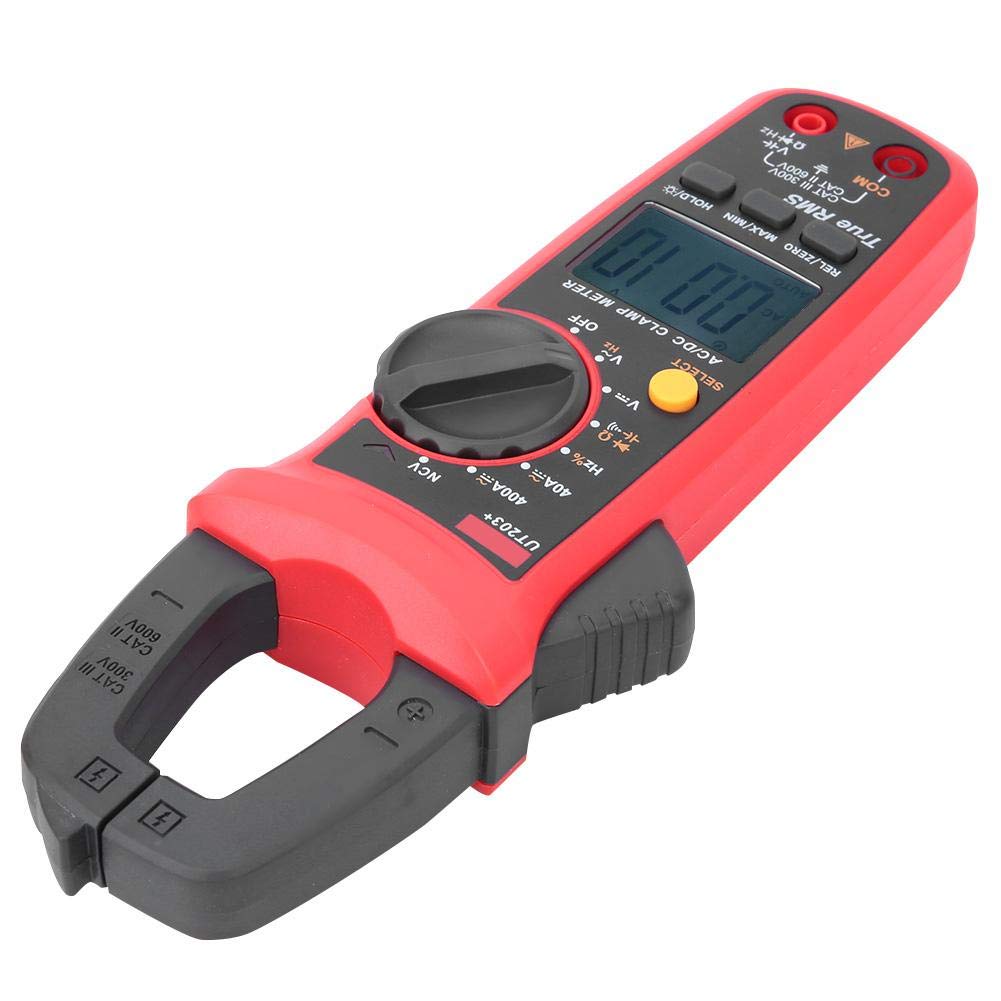

UNI-T Digital Clamp Meter UT203+


Price:
R 1,990

Tax included Shipping calculated at checkout

Stock:
Sold out

Description

UNI-T Digital Clamp Meter UT203+

This is an ideal clamp meter for solar installations with auto ranging AC and DC volts and Amp readings.

Features:

  • Large LCD display screen and fast ADC/ADC converter, the data display is clear and intuitive, and easy to observe. The maximum voltage measurement is 600V, with high voltage frequency measurement function. Supports AC current measurement function and capacitance measurement function (maximum 40mF), which is more convenient to use
  • The product contains the basic functions of electrical measurement, with high precision measurement, and expands the current frequency (UT201+/UT202+), high voltage frequency function, UT203+ has DC current measurement function
  • UT200 + Series hand-held automatic range true effective value clamp meter, designed according to the safety standard EN61010-2010 CAT II600V/CAT III 300V, has full-function anti-burning protection, and can meet the requirements of high reliability and high safety operation
  • Supports full-function error detection protection, with over-voltage, over-current alarm prompts, you can rest assured that use. It supports true RMS and can accurately and real-time measure the RMS of various voltage waveforms

Specifications:

  • DC Voltage:  600V
  • AC Voltage:  600V
  • DC Current: 400A
  • AC Current: 400A
  • Resistance: 40 kOhm
  • Frequency: 10Hz - 10MHz



Special Features:

  • Auto ranging
  • Diode
  • Continuity buzzer
  • Relative mode
  • Data hold
  • Full icon display
  • Sleep mode
  • Low battery display
  • Input impedance for DC Voltage: 10 MOhm
  • Max. display 3999 (35.6 x 18mm)


General Characteristics:


  • Power: 9V bat. (6F22)
  • Product size: 210 x 75.6 x 30mm
  • Product weight: 200g
