ZjBeny Surge Protection (SPD) PV DC Type II 600v BUD-40/2

ZJ BenySKU: AC-SA-ZJ-2P-DC-600

9cmx7.5cmx4cmx0.25kg: Small
R 595

Tax included Shipping calculated at checkout

Stock Available (138 units)

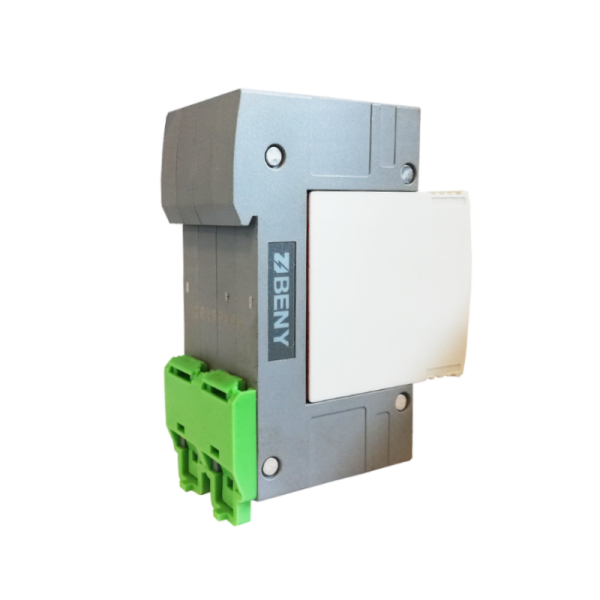

ZJBeny Surge Arrestor 600V BUD-40/2 Type II

ZJBeny Logo

PV DC BUD-40/2 Surge Protection Device was designed and manufactured, complying with the PV standard EN50539-11. It is widely used in PV DC combiner box, inverter, controller and PV DC cabinet. Rated voltage 600V DC. Maximum discharge current 40KA, High Energy Varistor, highly effective for lightning protection.

  • Suitable for use in all Photovoltaic Systems
  • Prewired Modular Complete Unit, consisting of a Base Part and Plug-in Protection
  • Plug-in Protection module, easy installation and maintenance
  • High Energy Varistor. Response time less than 25 nanosecond
  • Optimal remote signalling Contact (FM) for monitoring device (Floating Changeover Contact)
  • Din Rail Mounting TH35-7.5/DIN35
  • Comply with: EN50539-11
