Description

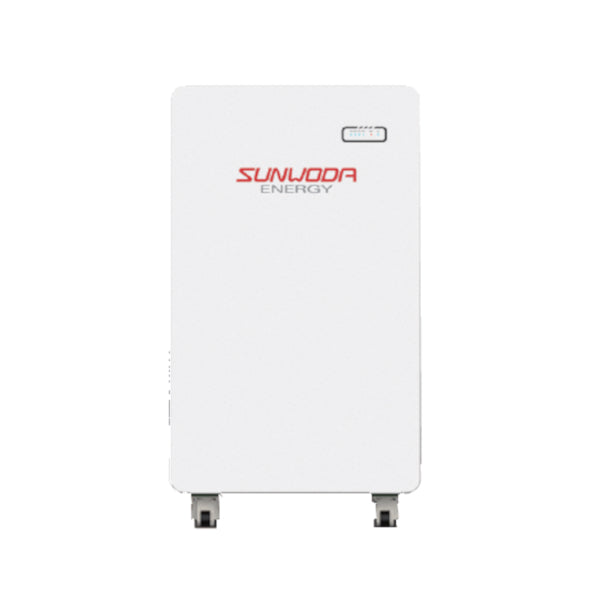

Sunwoda Atrix Max 14.3KW Lithium Battery
Take Control of Your Power with the Atrix Max
The Atrix Max features safe 280Ah LiFePO4 cells offering up to 9000 cycles and 1C continuous charge/discharge capability. With 14.3 kWh of capacity per unit, this high-performance residential and small commercial energy storage battery is built for demanding, high-capacity applications and exceptional long-term reliability. It delivers outstanding performance and safety even in extreme temperatures ranging from -20°C to 55°C. Equipped with real-time remote monitoring, it allows parallel connection of up to 32 units—scaling to a massive 457 kWh total capacity—providing efficient, stable, and flexible power solutions for homes, farms, and off-grid systems.
- Model: Atrix Max-14.3L
- Battery Type: Lithium Iron Phosphate (LiFePO₄)
- Nominal Energy Capacity: 14.3 kWh
- Usable Energy (100% DoD): 14.3 kWh
- Rated Voltage: 51.2 V
- Operating Voltage Range: 46.4V – 55.2V
- Rated Charge / Discharge Current: 140A / 200A
- Maximum Charge / Discharge Current: 280A / 280A
- Peak Output Current: 420A @ 10s
- Cycle Life: Up to 9000 Cycles
- Communication: CAN 2.0 / RS485
- Scalability: Up to 32 Batteries in Parallel (Max 457.6 kWh)
- Installation: Floor-Mounted / Wall-Mounted (Optional)
- Cooling: Air Cooling
- Protection Level: IP20 (Indoor Use)
- Dimensions (W×H×D): 500 × 970 × 265 mm
- Weight: 125 kg
- Warranty: 10 Years
- Certifications: IEC62619 / CE / UN38.3
