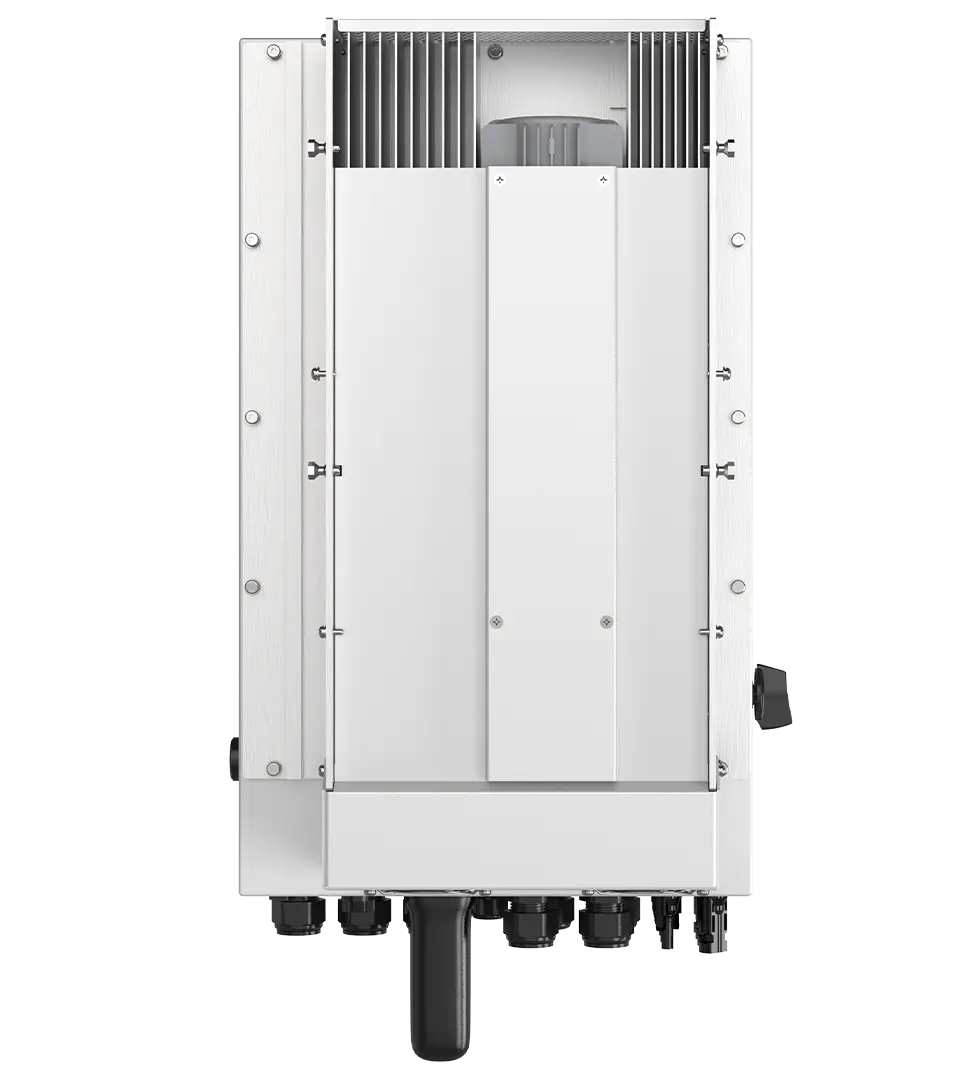

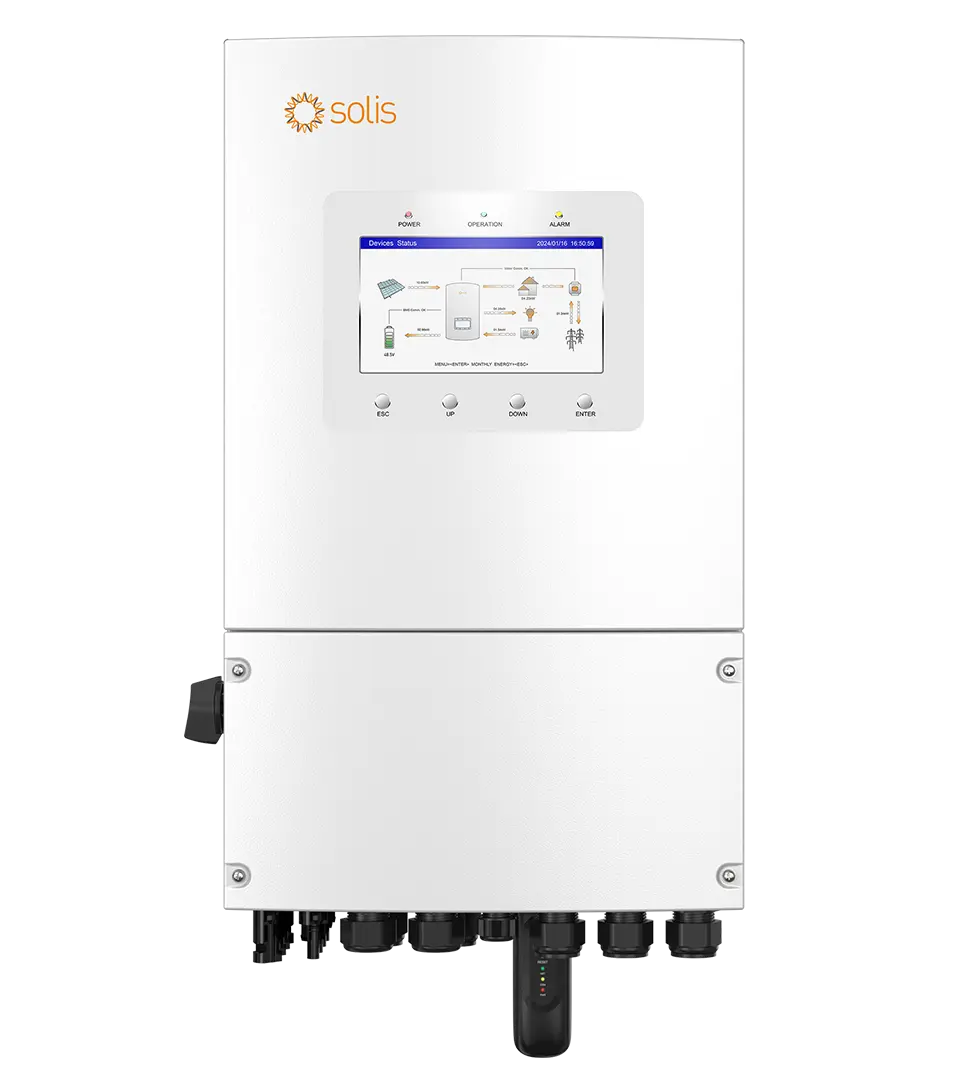

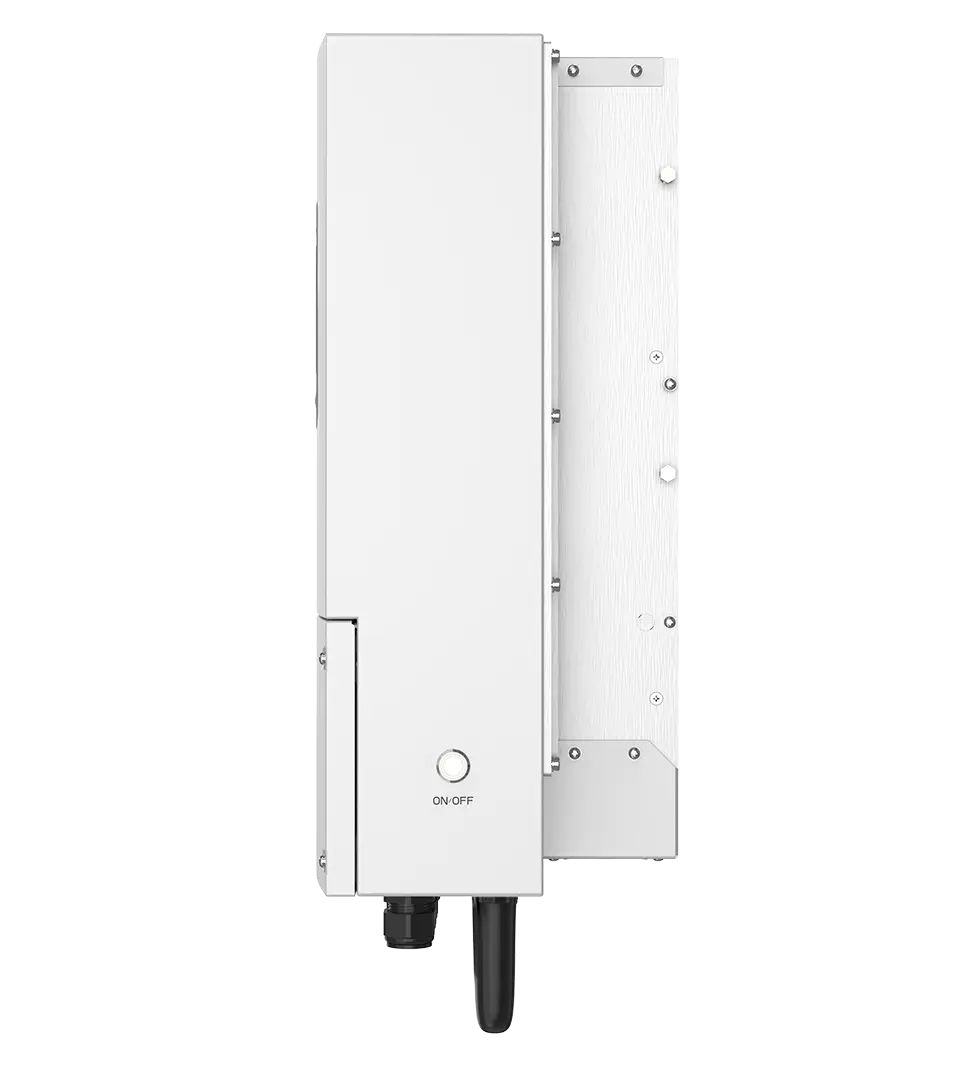

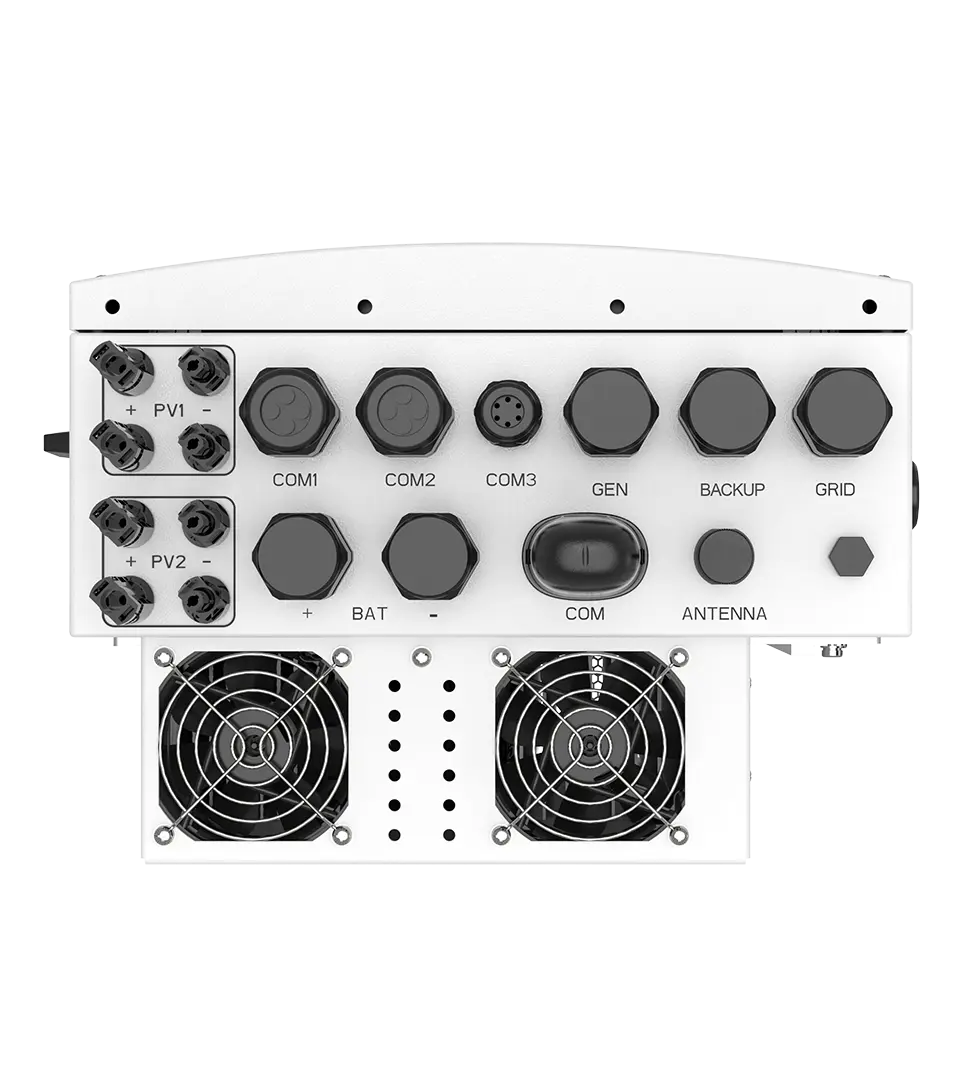

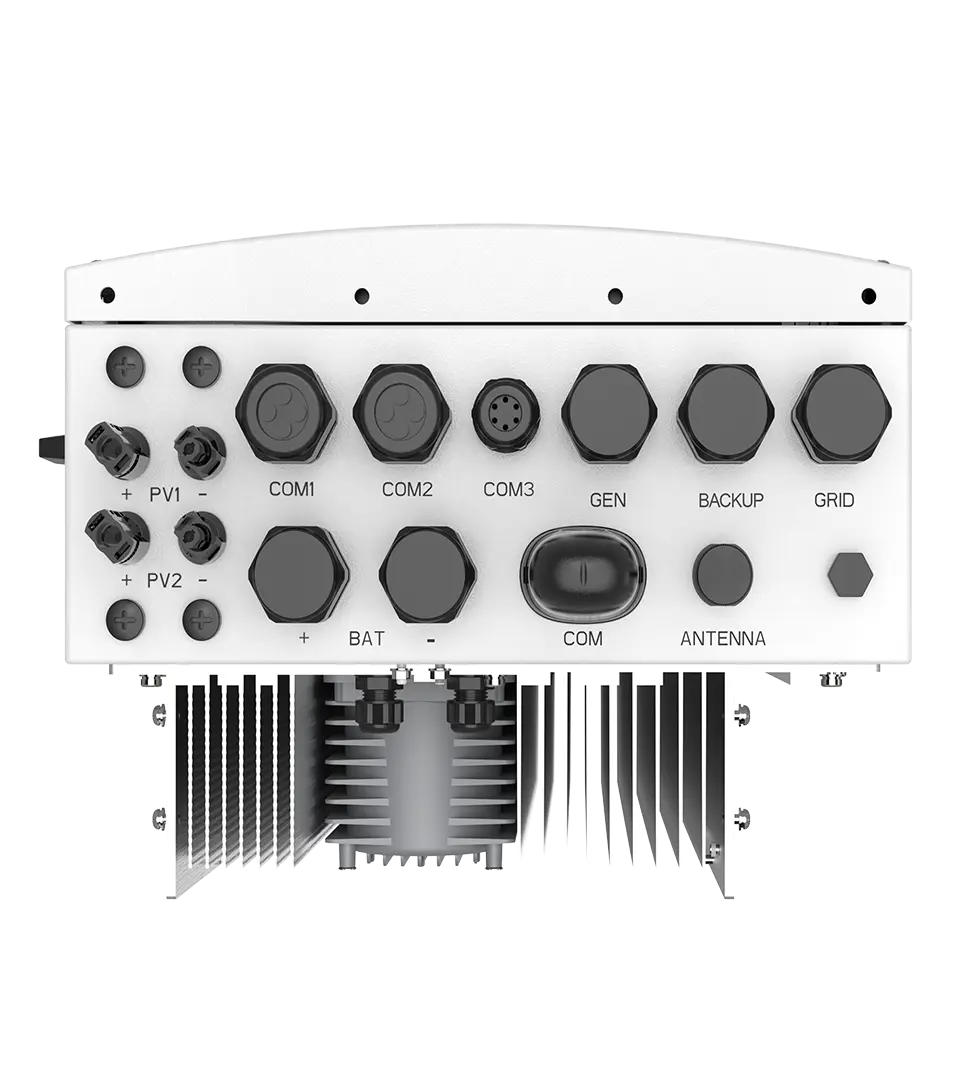

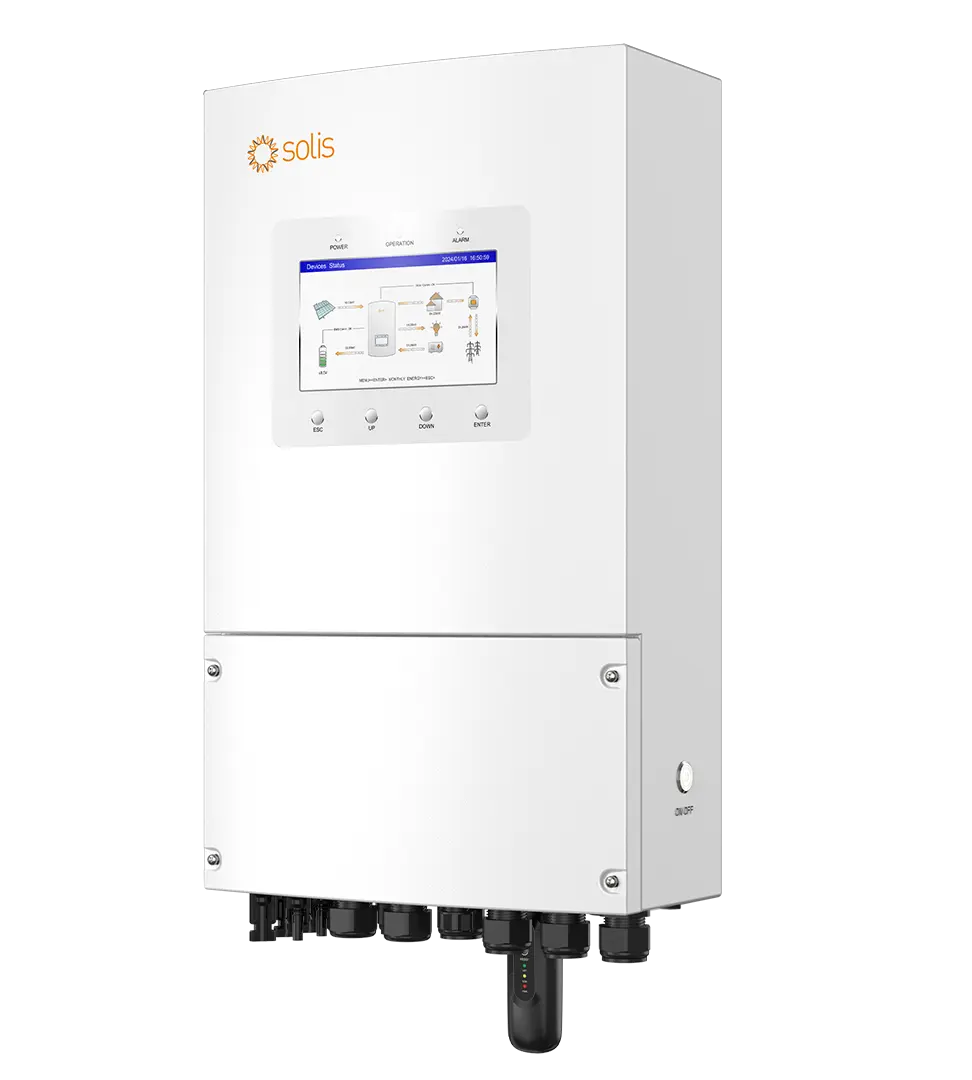

Solis S6-EH1P8K-L-PLUS 8kW Single-Phase Hybrid Inverter
The Solis S6-EH1P8K-L-PLUS 8kW Hybrid Inverter is the intelligent energy hub for South African homes and small businesses that are done tolerating loadshedding. Seamlessly managing solar generation, battery storage, and grid supply in a single unit, this single-phase hybrid delivers 8kW of continuous output and keeps critical loads online with a sub-4ms EPS switchover that most appliances won't even detect. Whether you're building a grid-tied backup system or stepping towards full energy independence, the Solis S6 Plus has the intelligence and reliability to get you there.
Key Features & Specifications:
- Seamless EPS Backup — Automatically switches to battery in under 4ms when the grid drops — faster than most appliances can detect, keeping your lights, fridge, and home office running through loadshedding without interruption
- Dual Independent MPPT — Two separate solar trackers handle different roof orientations, string lengths, or partial shading independently, maximising daily energy harvest across complex roof layouts
-
190A High-Rate Battery Interface — Supports fast charging and full 8kW output delivery; compatible with leading low-voltage lithium and lead-acid batteries for flexible system design
- Dual backup ports for intelligent load separation — keep critical circuits on a dedicated backup line while managing non-critical loads separately
- Generator Input Support — Connects directly to a generator for automatic charging and extended backup during prolonged outages — ideal for load zones experiencing severe loadshedding schedules
- SolisCloud Monitoring — 7" LCD display on-unit plus Bluetooth and optional Wi-Fi; the SolisCloud app gives real-time visibility of solar production, battery state, and grid flow from your phone, anywhere
- NRS 097-2-1 Grid Certified — Approved to South Africa's SSeg grid connection standard, ensuring full compliance for utility connection and smart energy tariff programmes
- IP66 All-Weather Enclosure — Fully sealed against dust and high-pressure water, rated for outdoor wall installation across South Africa's coastal, highveld, and bushveld conditions
Warranty Protection:
- 10-year standard product warranty
- T&C may apply.
The Solis S6-EH1P8K-L-PLUS is built for South Africa's energy reality — not just an off-the-shelf hybrid inverter adapted for local conditions. Its sub-4ms EPS switchover, generator compatibility, dual backup ports, and NRS 097-2-1 certification make it a purpose-engineered loadshedding solution. Pair it with a compatible lithium battery bank for a complete, monitored, grid-interactive energy system. Contact our team to spec the right Solis S6 Plus configuration for your home or business.
E&OE. Product specifications are subject to change without notice. Please refer to the official manufacturer datasheet to confirm all specifications before purchase or installation.
| Identification | |
|---|---|
| Brand | Solis |
| Model | S6-EH1P8K-L-PLUS |
| Phase | Single-phase |
| Rated power | 8 kW |
| Solar (PV) input | |
| Max PV input power | 12.8 kW |
| Number of MPPTs | 2 |
| Max PV input voltage | 500 V |
| MPPT voltage range | 90–435 V |
| Max PV current per MPPT | 32 A |
| Battery | |
| Battery type | Lithium-ion / Lead-acid |
| Battery voltage type | LV |
| Battery voltage range | 40–60 V |
| Max charge / discharge current | 190 A |
| AC output & backup | |
| Rated AC output power | 8 kW |
| Backup (EPS) switch-over time | 4 ms |
| Peak / surge power | 2× rated, 10 s |
| Generator (genset) input | Yes |
| General & mechanical | |
| Dimensions (W × H × D) | 335 × 560 × 253 mm |
| Weight | 23.5 kg |
| IP rating | IP66 |
| Operating temperature | -25 to +60 °C |
| Cooling | Intelligent fan cooling |
| Connectivity & compliance | |
| Display & monitoring | 7-inch LCD + Bluetooth + APP; RS485/CAN (optional WiFi/GPRS/LAN) |
| Certifications | NRS 097-2-1, IEC 62116, IEC 61727, EN 50530, EN 50549-1, G98, G99, CEI 0-21 |
| Warranty | 10 years |
