Solar Cable 6mm Red 50m Roll

LeoniSKU: CA-SOL-6-R-50

Price:
R 920

Tax included Shipping calculated at checkout

Stock:
Stock Available (10 units)

Description

Solar Cable 6mm Red 50m Roll

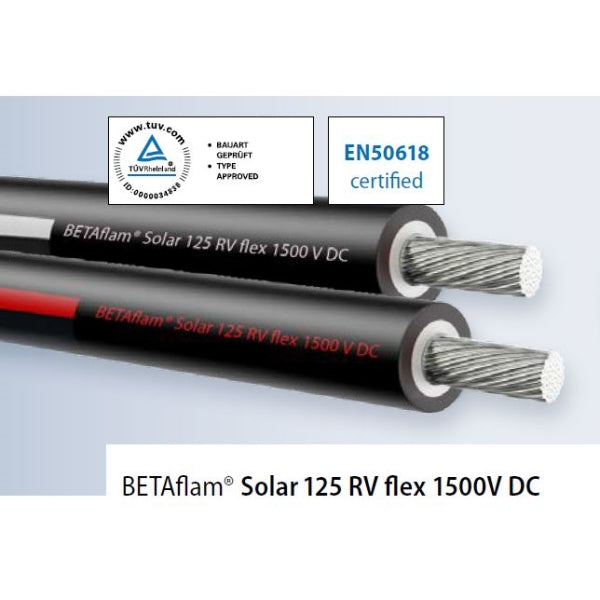

BETAflam® Solar 125 RV+ flex 1500V DC

Photovoltaic power cables, halogen free, flame retardant

Applications
Used as photovoltaic cable between solar modules and inverters
in a photovoltaic system with a rated value U0 = 1.5 kV DC.

 Advantages

  • EN50618 approval
  • Electron-beam cross-linked
    compounds
  • UV, ozone and hydrolysis
    resistant
  • High temperature resistance,
    the materials do not melt or flow
  • Good cold flexibility
  • Very long service life
    >25 years at 90 °C
  • Compatible to all popular
    connectors

Construction

  •  Conductor: Tinned fine copper strand according
    to VDE 0295 / IEC 60228, Class 5
  • Insulation: XLPO, flame-retardant, halogen free,
    electron-beam cross-linked
  • Jacket: XLPO, flame-retardant, halogen free,
    electron-beam cross-linked,
    UV and ozone resistant,
    with white or red marking and stripe
  • Jacket colour: Black

Electrical characteristics

  • Rated value: U0 = 1500 V DC
    (max. permitted voltage U0 1800 V DC)
  • Test voltage: 6.5 kV AC 50 Hz

Thermal characteristics

  • Operating temperature: –50 °C up to +120 °C
  • Ambient temperature: –50 °C up to +90 °C
  • Max. short circuit temp.: +280 °C, +536 °F / 5 s

 Bending radius

  • Fixed installation: > 4 ×
  • Occasionally moved: > 5 ×

Standards / Material properties

  • Fire performance: IEC 60332-1
  • Smoke emission: IEC 61034; EN 61034-2
  • Low fire load: DIN 51900
  • Approvals: EN50618; H1Z2Z2-K

Fire properties according to the CPR

  • Dca-s2, d2, a2, EN 50575, EN 13501-6
  • Fire performance Dca: EN 50399
  •  Low corr. of the combustion gases: EN 60754-2 – halogen free a2
  •  Medium smoke density s2: EN 50399
  •  Flaming droplets d2: EN 50399
  •  No flame propagation: EN 60332-1-2
  •  RoHS-compliant material selection
