Deye 10KW New Gen Hybrid Inverter V3

Deye 10kW New Gen Hybrid Inverter V3

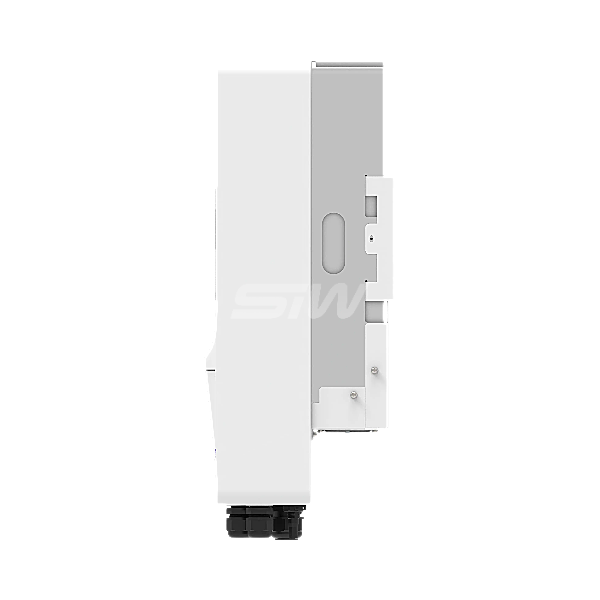

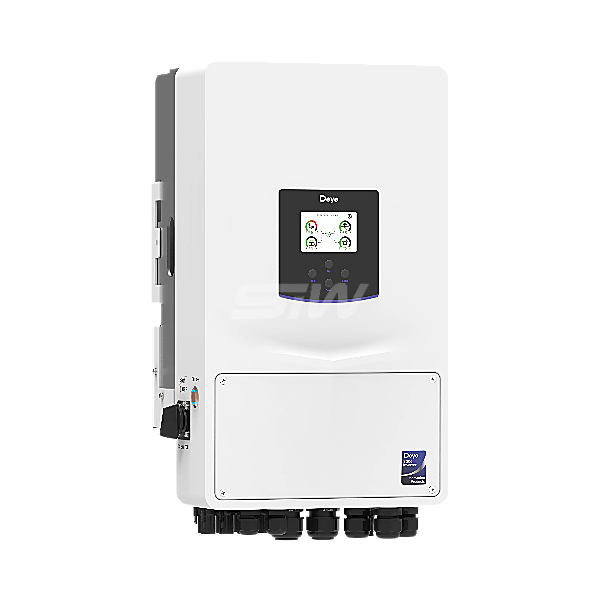

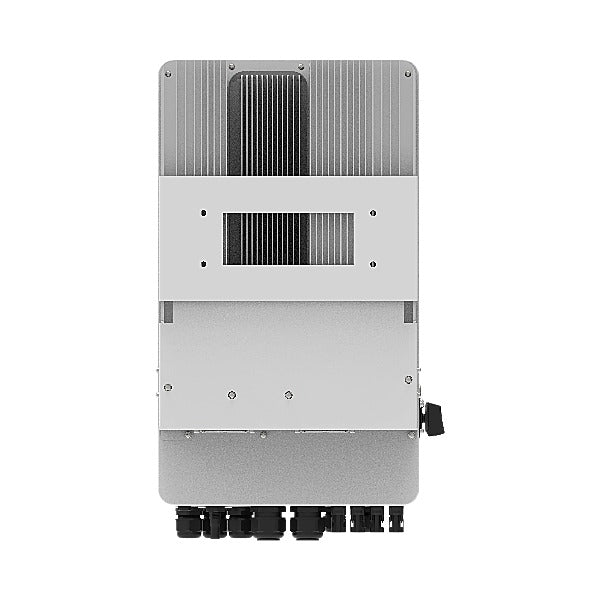

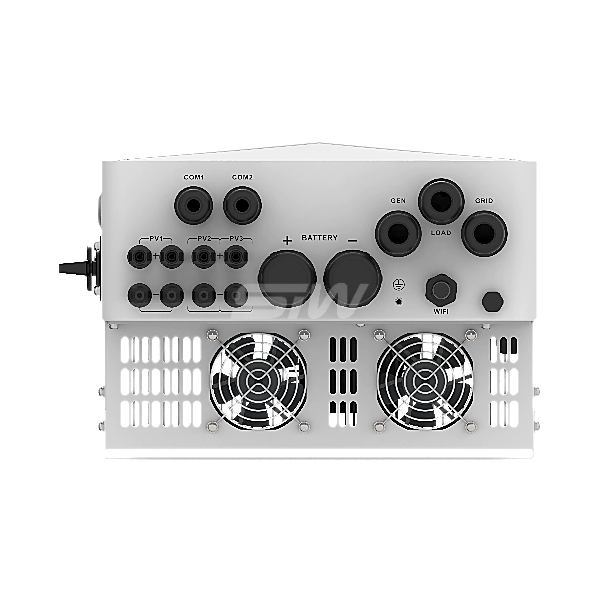

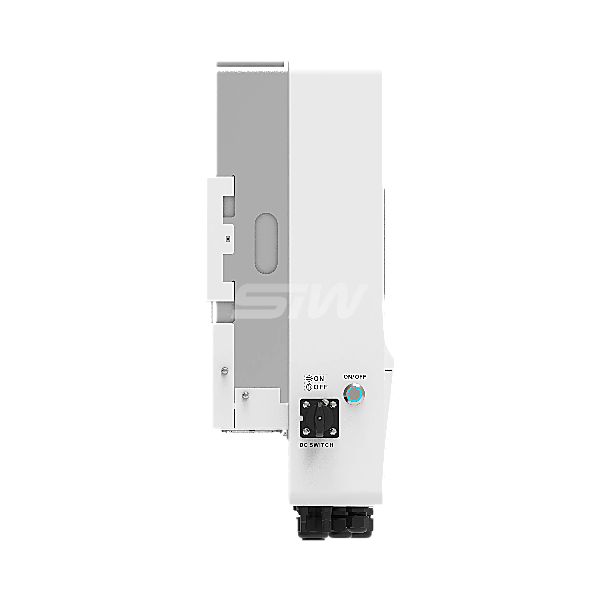

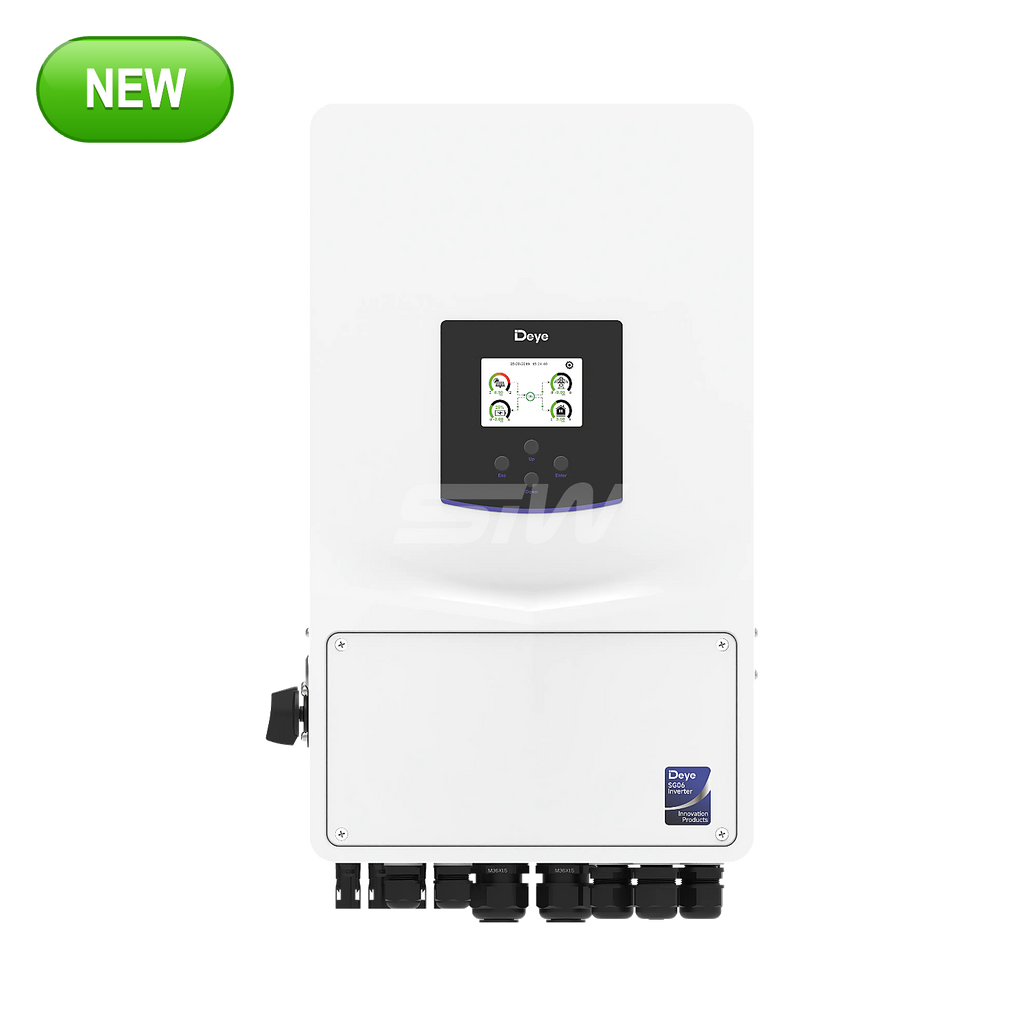

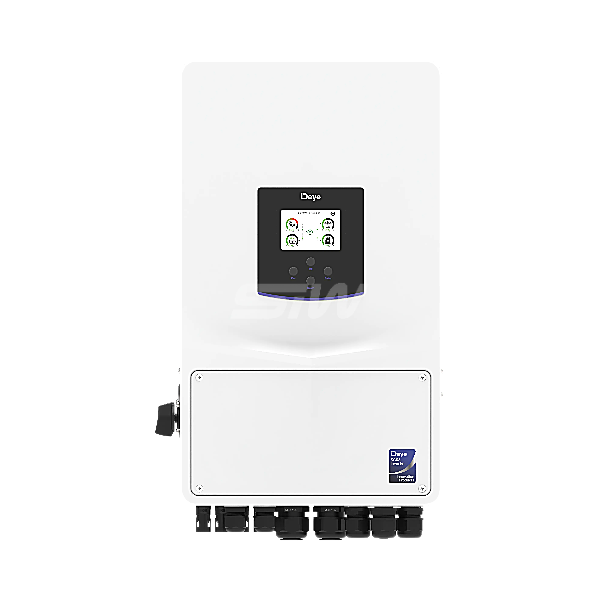

The Deye 10kW Hybrid Inverter V3 (SUN-10K-SG06LP1-EU-CM3) is a high-capacity single-phase hybrid inverter designed for large South African homes, small commercial premises, and agricultural properties with demanding energy requirements. Delivering 10kW of continuous output at up to 97.6% efficiency, it combines NRS 097 grid certification, three independent MPPT trackers, a 220A battery interface, and an upgraded colourful touch LCD — making it one of the most capable single-phase hybrid inverters available for the South African market.

Key Features & Specifications:

• Seamless Loadshedding Backup — Automatically switches between solar, battery, and grid to maintain full power through loadshedding with no manual intervention required. At 10kW continuous output, it sustains heavy domestic and light commercial loads — air conditioning, industrial refrigeration, multiple appliances — without compromise. Six programmable time periods enable precise scheduling aligned with South African tariff structures.
• 220A High-Rate Battery Interface — With a maximum charging and discharging current of 220A, the Deye 10kW V3 delivers exceptional battery throughput — filling large LV lithium battery banks rapidly and sustaining strong discharge performance under the heaviest loads.
• Triple Independent MPPT Solar Charging — Three separate MPPT trackers accept up to 20,000W of combined solar input and independently optimise energy harvest from each string — maximising yield across complex rooftop configurations, split orientations, and partial shading conditions.
• AC Coupling for Retrofit Installations — Connects to an existing grid-tied PV system via AC coupling, allowing homeowners and businesses to add battery storage without replacing their current panels or inverter — a cost-effective upgrade for established solar installations.
• Diesel Generator Input Support — Accepts charging from a diesel generator, ensuring a reliable backup source for farms, rural properties, and commercial sites during extended outages when solar alone cannot sustain 10kW of continuous load.
• Colourful Touch LCD & Remote Monitoring — The upgraded colourful touch display provides full system status and control directly on the inverter — a meaningful improvement over the standard LCD screens of earlier models. Connect via Wi-Fi to the Deye Cloud platform to monitor real-time solar generation, battery state, and grid usage from any smartphone.
• NRS 097 Grid Certified | IP65 All-Weather Enclosure — Holds current NRS 097 certification for South African grid connection, supporting COC sign-off by registered installers. The IP65-rated enclosure with intelligent air cooling manages the thermal demands of 10kW continuous output — reliable in both indoor and outdoor wall-mounting configurations.

Warranty Protection:

• 10-year product warranty
• T&C may apply.

The Deye 10kW Hybrid Inverter V3 is the right choice for South African properties with high energy demands — large homes running multiple heavy appliances, small commercial premises with sustained daytime loads, and agricultural operations that cannot afford downtime. Parallel capability for up to 16 units enables scalable system growth without infrastructure replacement. Contact our team to design the right configuration or request a quote.

E&OE. Product specifications are subject to change without notice. Please refer to the official manufacturer datasheet to confirm all specifications before purchase or installation.
