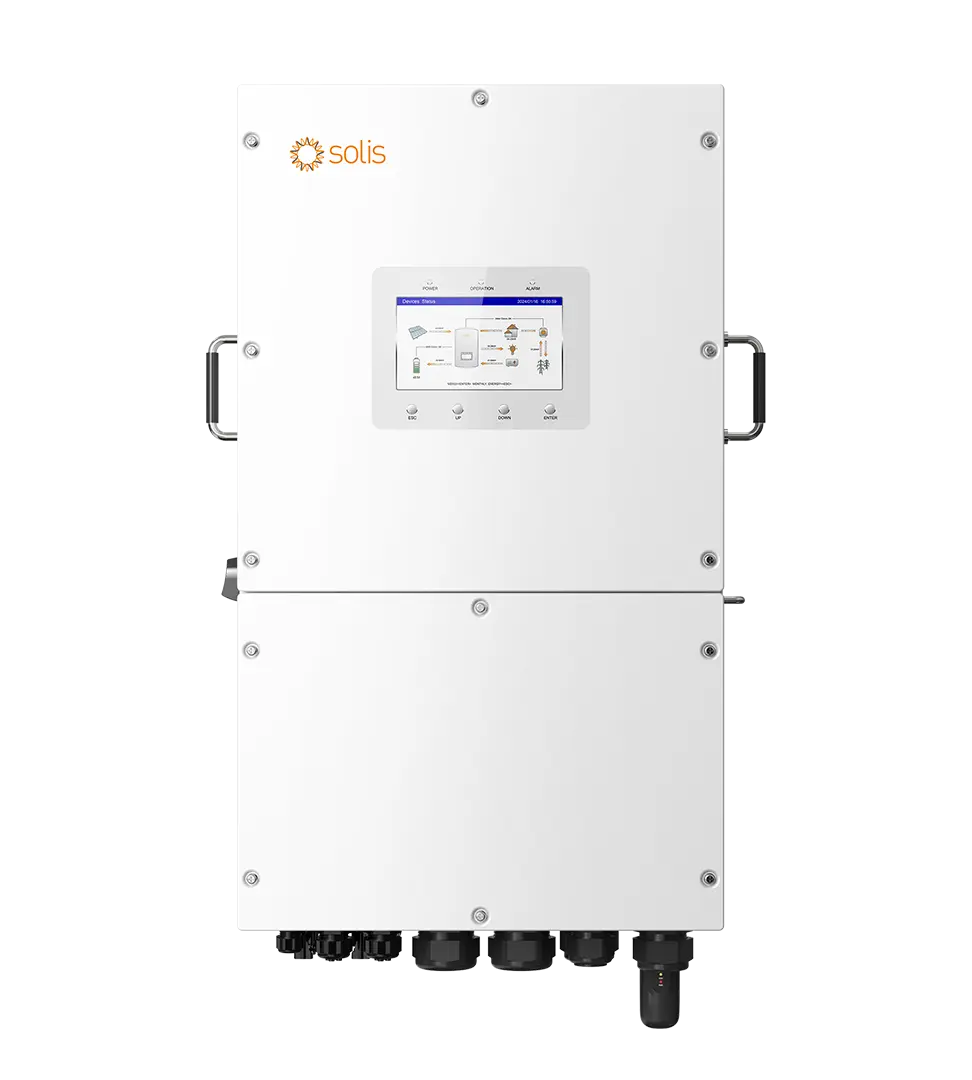

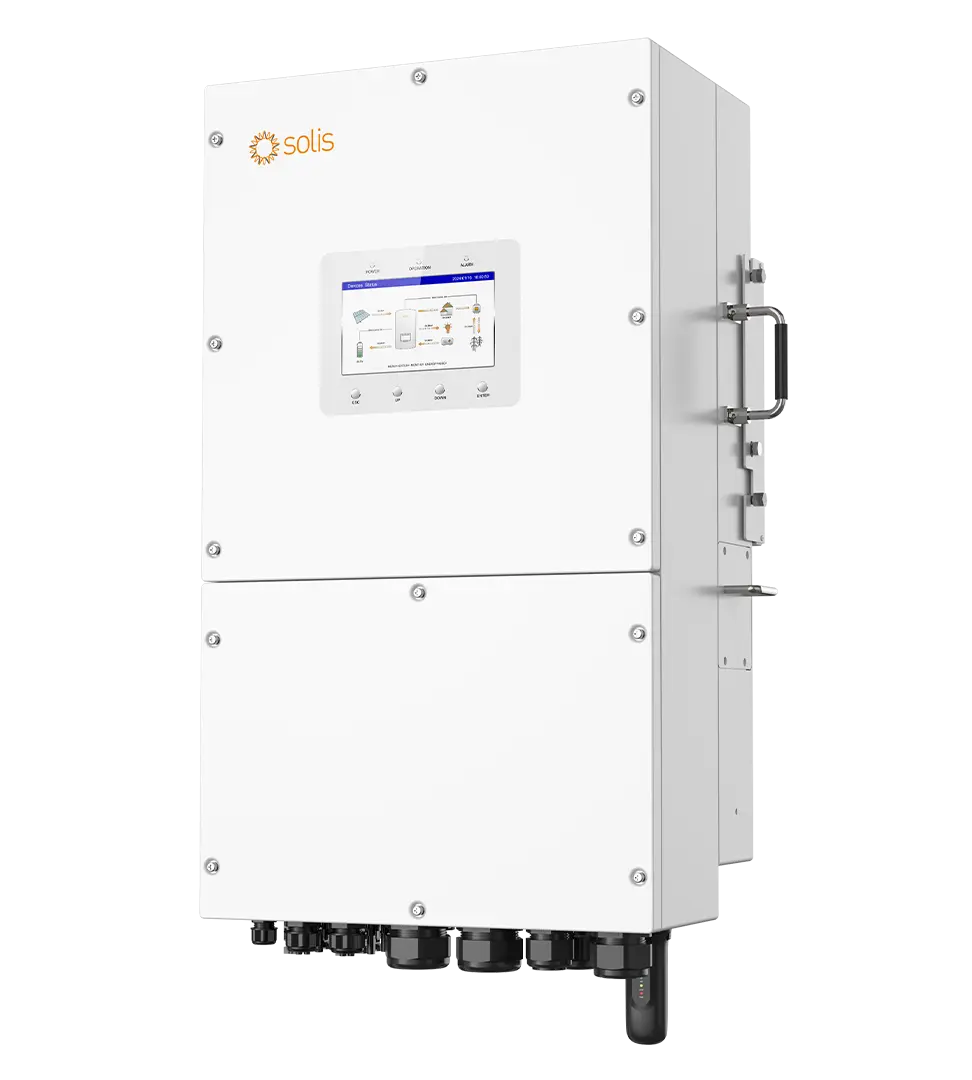

Solis S6 Pro 6kW Advanced Hybrid Inverter
Description
The Solis S6 Pro Hybrid inverter range offers advanced features suitable to meet and excel in todays solar market. Smart LED display, generator integration and so much more.
Single phase low voltage energy storage inverter
- UPS rating and off-grid switching
- Maximum charge and discharge current of 135A
- 6-stage timed charge and discharge function
- 2 times the output of off-grid load capacity for 10 seconds
- Various methods of connecting to the generator can control the automatic start and stop of the generator.
- Supports single-phase or three-phase parallel connection, and can build a maximum system of 36kW
- Supports lithium batteries and lead-acid batteries, integrated battery treatment and protection functions
- Supports "Peak Shaving" function in spontaneous self-use and generator mode
Features

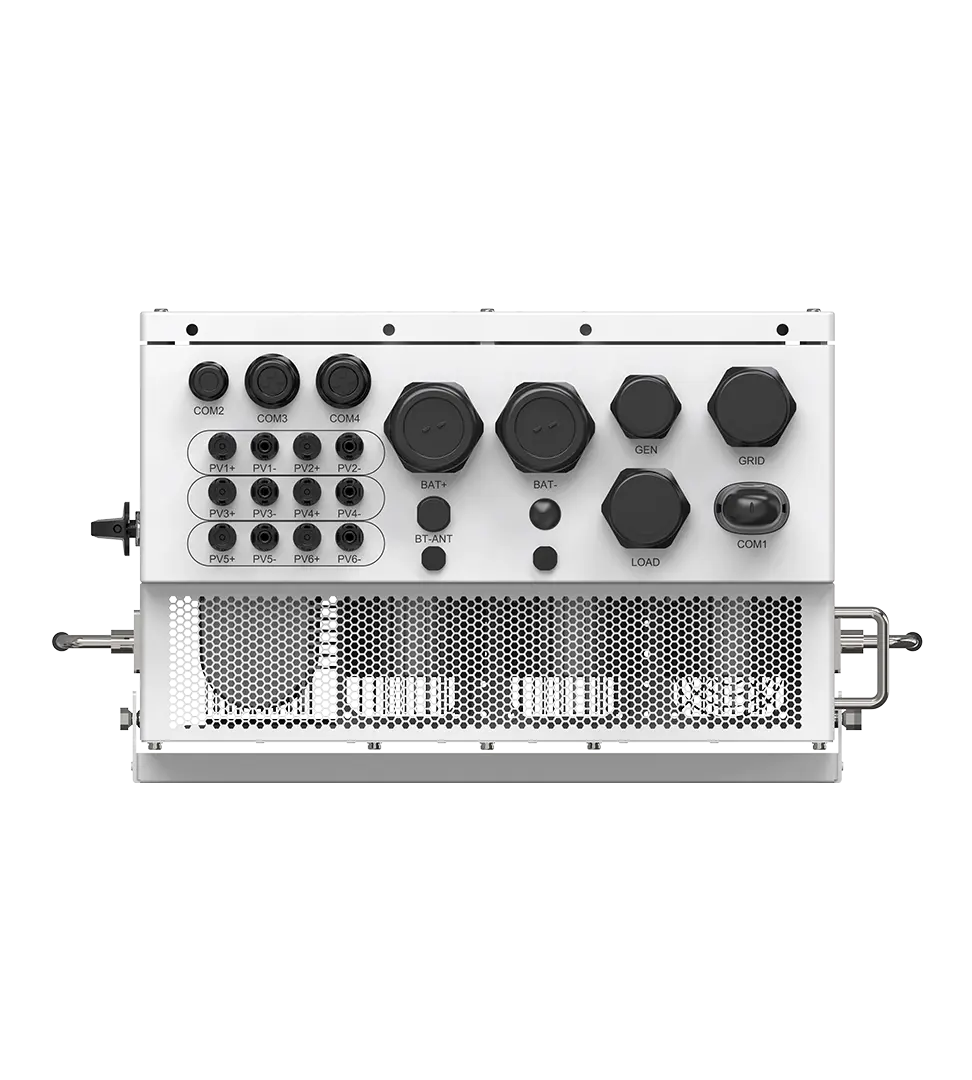

DC connection: MC4 plug (PV port) / Terminal Block (BAT port)
AC connection: Terminal Block
Display: LED + APP
Communication: RS485, CAN, Optional: Wi-Fi, GPRS, LAN
Automatic UPS switching
Up to 135A max charge/discharge current
6 customizable charge/discharge time settings
10-second 200% surge power backup overload capability
Supports 1ph and 3ph flexible connection with max 36kW in parallel
Supports peak shaving control in both "self-use" and "generator" mode
Generator connectivity with multiple input methods and automatic generator On/Off control
Compatible with lead-acid and lithium batteries, with multiple battery protection features
Specifications
Input DC (PV side)
Recommended max. PV power: 9.6 kW
Max. input voltage: 600 V
Rated voltage: 330 V
Start-up voltage: 90 V
MPPT voltage range: 90-520 V
Max. input current: 16 A / 16 A
Max. short circuit current: 24 A / 24 A
MPPT number/Max. input strings number: 2/2
Battery
Battery type: Li-ion / Lead-acid
Battery voltage range: 40-60 V
Max. charge/discharge power: 6 kW
Max. charge/discharge current: 135 A
Communication: CAN/RS485
Output AC (Grid side)
Rated output power: 6 kW
Max. apparent output power: 6.6 kVA
Operation phase: 1/N/PE
Rated grid voltage: 220 V / 230 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 27.3 A / 26.1 A
Max. output current: 30 A
Power factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <2%
Input AC (Grid side)
Input voltage range: 187-253 V
Max. input current: 40 A
Frequency range: 45-55 Hz / 55-65 Hz
Output AC (Back-up)
Rated output power: 6 kW
Max. apparent output power: 2 times of rated power, 10 s
Back-up switch time: <4 ms
Rated output voltage: 1/N/PE, 220 V / 230 V
Rated frequency: 50 Hz / 60 Hz
Rated output current: 27.3 A / 26.1 A
Max. output current: 40 A
THDv (@linear load): <2%
Efficiency
Max. efficiency: > 97.5%
EU efficiency: > 96.2%
Protection
DC reverse-polarity protection: Yes
Ground fault monitoring: Yes
Integrated AFCI (DC arc-fault circuit protection): Yes (Activation required)
Protection class/Over voltage category: I/II
General Data
Dimensions (W*H*D): 406*560*205 mm
Weight: 24 kg
Topology: High-frequency isolation (for battery)
Operating ambient temperature range: -40 ~ +60°C
Ingress protection: IP66
Cooling concept: Natural convection
Max. operation altitude: 4000 m
Safety/EMC standard: IEC/EN 62109-1/-2, EN 61000-6-2/-3
Grid connection standard: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
