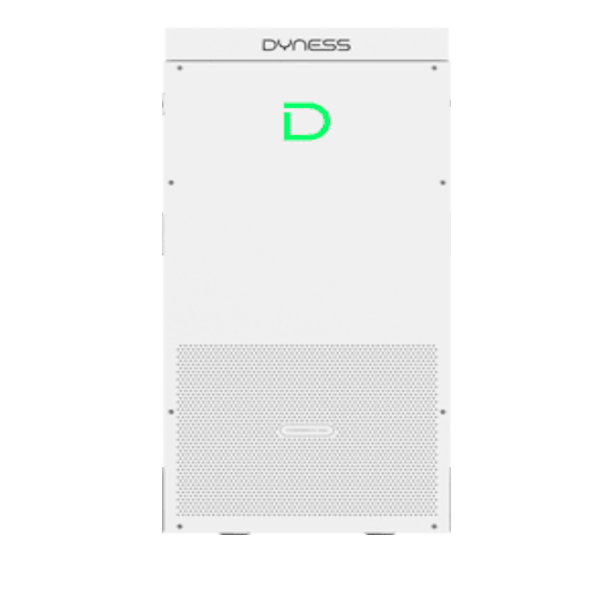

Dyness 16KW Lithium Battery PowerBrick Max

Dyness 16kWh PowerBrick Max Lithium Battery

The Dyness PowerBrick Max is the flagship model in the PowerBrick family — a floor-standing, high-capacity LiFePO4 battery delivering 16.076kWh of rated storage at 51.2V nominal. Building on the proven PowerBrick platform, the Max steps up capacity to 314Ah while retaining the range's signature built-in wheels, factory-integrated aerosol fire suppression, and seamless Wi-Fi connectivity via the Dyness Smart App.

With 95% depth of discharge, 200A continuous charge/discharge capability, and an 8,000-cycle lifespan, the PowerBrick Max is engineered for demanding residential and light commercial solar applications where maximum capacity, reliability, and safety are non-negotiable.

16.076kWh LiFePO4 Storage at 95% DoD

• Rated Capacity: 16.076kWh / 314Ah at 51.2V nominal, delivering 15.272kWh of usable energy at 95% depth of discharge. LiFePO4 chemistry ensures outstanding thermal stability, long cycle life, and consistent performance across South Africa's varied climate conditions.

200A Maximum Charge/Discharge Rate

• Continuous Current: The PowerBrick Max supports up to 200A continuous charge and discharge — providing high-power output to meet the demands of large inverters and energy-intensive loads without compromise.

Scalable Capacity — No HUB Required

• Scalability: Multiple PowerBrick Max units can be connected in parallel to expand total system capacity in line with your energy requirements — no separate hub or external BMS required. Each additional unit integrates seamlessly, increasing storage while maintaining the simplicity of the PowerBrick architecture.

Compact Build with Built-In Wheels

• Mobility & Installation: Despite its substantial 116kg weight and 435×233×857mm form factor, the PowerBrick Max features built-in wheels for straightforward repositioning and on-site placement. The floor-standing design makes it easy to position precisely in a battery bay or plant room without specialised lifting equipment.

Built-In 5-Second Aerosol Fire Suppression

• Fire Safety: The PowerBrick Max includes a factory-integrated 5-second aerosol fire suppression system — an automatic internal safety mechanism designed to suppress thermal events rapidly and reduce the risk of fire propagation. This is a standard built-in feature of the PowerBrick Max, providing an additional layer of protection for your home or installation.

Built-In Wi-Fi & Dyness Smart App

• Connectivity: Onboard Wi-Fi connects the PowerBrick Max to the Dyness Smart App, giving you real-time visibility of state of charge, energy flow, and system status from your smartphone — anywhere, anytime, on iOS or Android.

Wide Inverter Compatibility

• Compatibility: The Dyness PowerBrick Max is compatible with a wide range of hybrid inverters used across South African solar installations. Always confirm full system and inverter compatibility with your installer before purchase.

E&OE. Product specifications are subject to change without notice. Please refer to the official manufacturer datasheet to confirm all specifications before purchase or installation.
