Description
Solis 8KW Hybrid Inverter
Killer deal save R2000.00

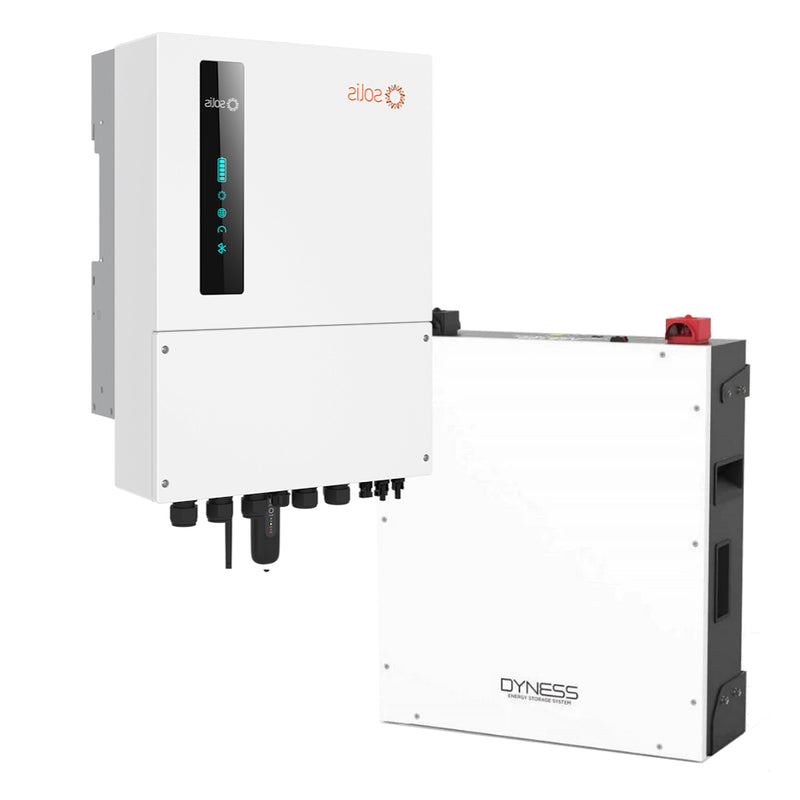

1 x Solis 8kW Hybrid inverter
Plus
1 x Dyness BX5.12 kWh battery

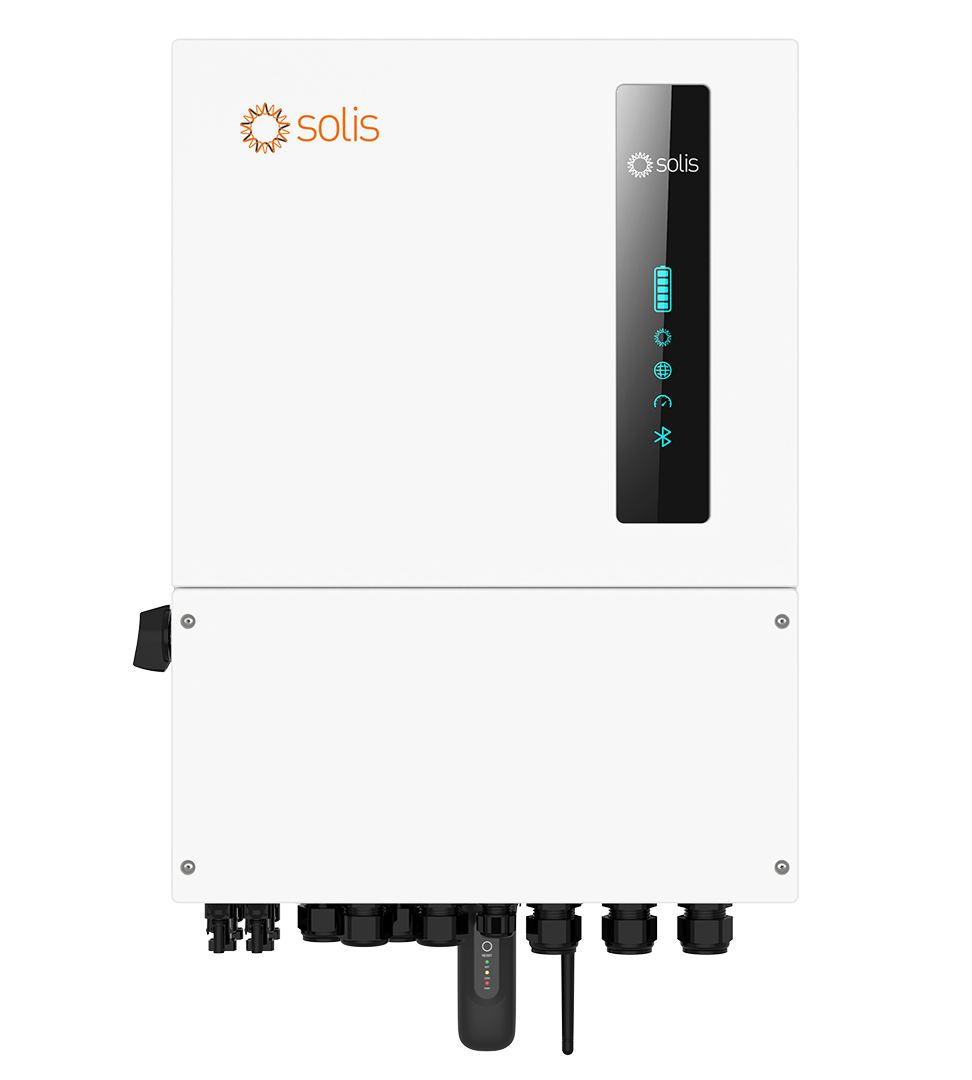

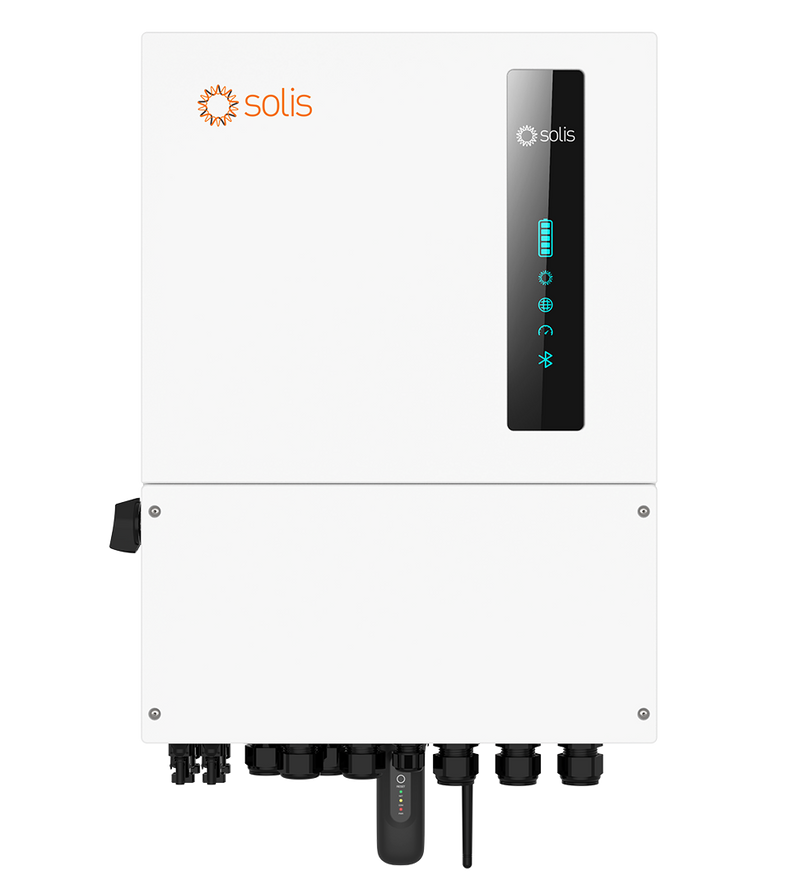

Solis 8kW S6 Pro Hybrid Inverter.
The Solis S6 Pro Hybrid inverter range offers advanced features suitable to meet and excel in todays solar market. Smart LED display, generator integration and so much more.
Single phase low voltage energy storage inverter
- UPS rating and off-grid switching
- Maximum charge and discharge current of 190A
- 6-stage timed charge and discharge function
- 10 second 200% surge power backup overload capability
- Various methods of connecting to the generator can control the automatic start and stop of the generator.
- Supports single-phase or three-phase parallel connection, and can build a maximum system of 48kW
- Supports lithium batteries and lead-acid batteries, integrated battery treatment and protection functions
- Supports "Peak Shaving" function in spontaneous self-use and generator mode
Features
DC connection: MC4 plug (PV port) / Terminal Block (BAT port)
AC connection: Terminal Block
Display: LED + APP
Communication: RS485, CAN, Optional: Wi-Fi, GPRS, LAN
Automatic UPS switching
Up to 190A max charge/discharge current
6 customizable charge/discharge time settings
10-second 200% surge power backup overload capability
Supports 1ph and 3ph flexible connection with max 48kW in parallel
Supports peak shaving control in both "self-use" and "generator" mode
Generator connectivity with multiple input methods and automatic generator On/Off control
Compatible with lead-acid and lithium batteries, with multiple battery protection features
Specifications
Input DC (PV side)
Recommended max. PV power: 12.8 kW
Max. input voltage: 600 V
Rated voltage: 330 V
Start-up voltage: 90 V
MPPT voltage range: 90-520 V
Max. input current: 32 A / 32 A
Max. short circuit current: 36 A / 36 A
MPPT number/Max. input strings number: 2/3
Battery
Battery type: Li-ion / Lead-acid
Battery voltage range: 40-60 V
Max. charge/discharge power: 8 kW
Max. charge/discharge current: 190 A
Communication: CAN/RS485
Output AC (Grid side)
Rated output power: 8 kW
Max. apparent output power: 8.8 kVA
Operation phase: 1/N/PE
Rated grid voltage: 220 V / 230 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 36.4 A / 34.8 A
Max. output current: 40 A
Power factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <2%
Input AC (Grid side)
Input voltage range: 187-253 V
Max. input current: 40 A
Frequency range: 45-55 Hz / 55-65 Hz
Output AC (Back-up)
Rated output power: 8 kW
Max. apparent output power: 2 times of rated power, 10 s
Back-up switch time: <4 ms
Rated output voltage: 1/N/PE, 220 V / 230 V
Rated frequency: 50 Hz / 60 Hz
Rated output current: 36.4 A / 34.8 A
Max. output current: 40 A
THDv (@linear load): <2%
Efficiency
Max. efficiency: > 97.5%
EU efficiency: > 96.2%
Protection
DC reverse-polarity protection: Yes
Ground fault monitoring: Yes
Integrated AFCI (DC arc-fault circuit protection): Yes (Activation required)
Protection class/Over voltage category: I/II
General Data
Dimensions (W*H*D): 406*560*215 mm
Weight: 27 kg
Topology: High-frequency isolation (for battery)
Operating ambient temperature range: -40 ~ +60°C
Ingress protection: IP66
Cooling concept: Natural convection
Max. operation altitude: 4000 m
Safety/EMC standard: IEC/EN 62109-1/-2, EN 61000-6-2/-3
Grid connection standard: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

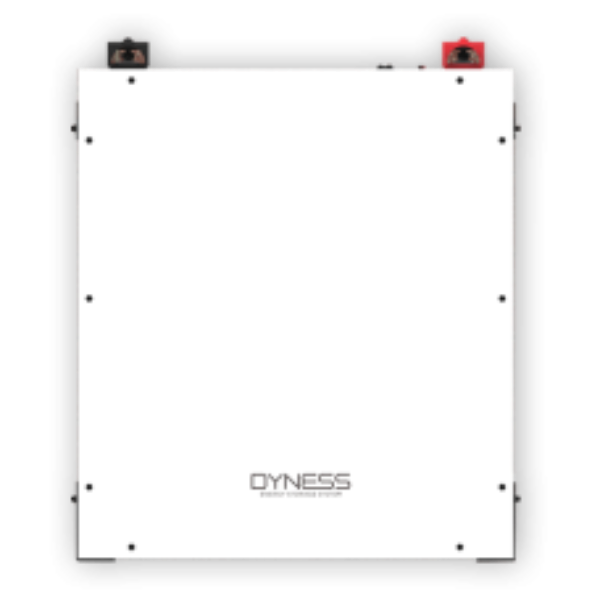

Dyness 5.12KW Lithium Battery BX51100
BX51100 lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of BX51100 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.
Product Properties
BX51100 energy storage product’s positive electrode materials are lithium iron phosphate, battery cells are managed effectively by BMS with better performance, the system’s features as below:
-
Comply with European ROHS, Certified SGS, employ non-toxic, non-pollution environment friendly battery.
-
Anode materials are lithium iron phosphate (LiFePO4), safer with longer life span.
-
Carries battery management system with better performance, possesses protection function like over-discharge, over-charge, over-current, abnormal temperature.
-
Self-management on charging and discharging, Single core balancing function.
-
Intelligent design configures integrated inspection module.
-
Flexible configurations allow parallel of multi battery for longer standby time.
-
Self-ventilation with lower system noise.
-
Less battery self-discharge, then recharging period can be up to 10 months during the storage.
-
No memory effect so that battery can be charged and discharged shallowly.
-
With wide range of temperature for working environment, -20℃ ~ +55℃, circulation span and discharging performance are well under high temperature.
-
Less volume, lighter weight.
